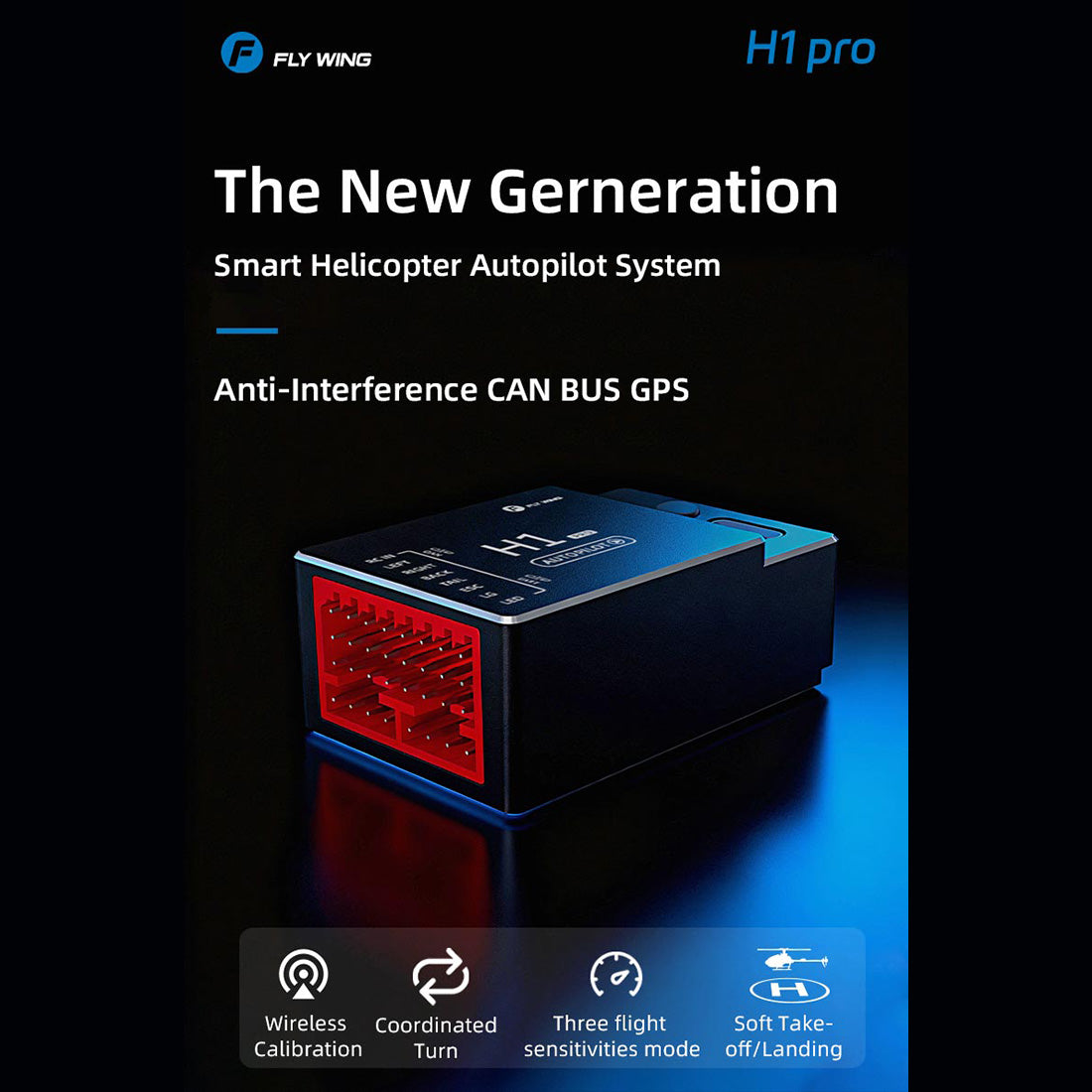

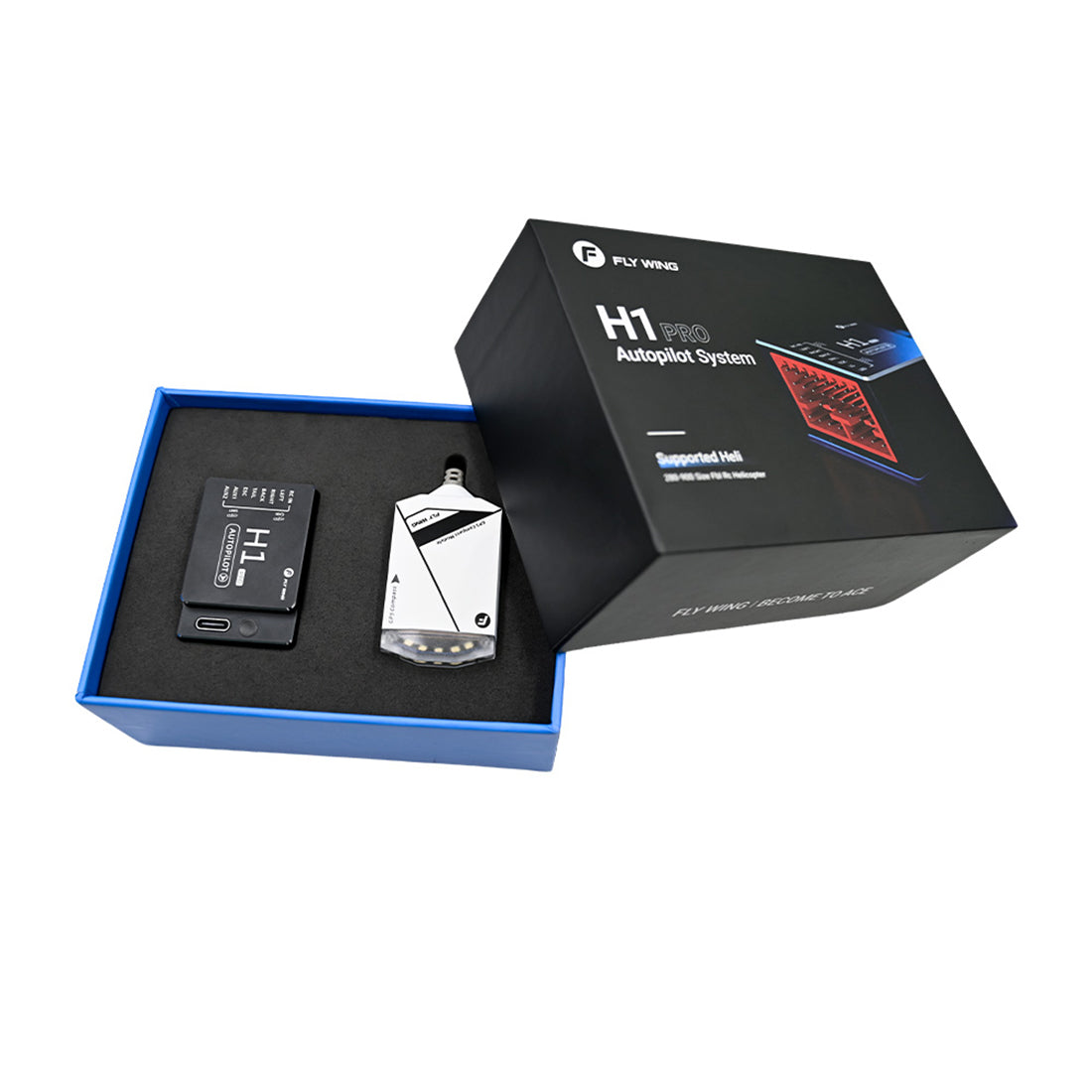

FLYWING H1 Pro Autopilot System, Independent Suspended IMU Expandable Duall GNSS Flight Control Module for H3/HR3 Swashplate Flybarless Helicopters

Features:

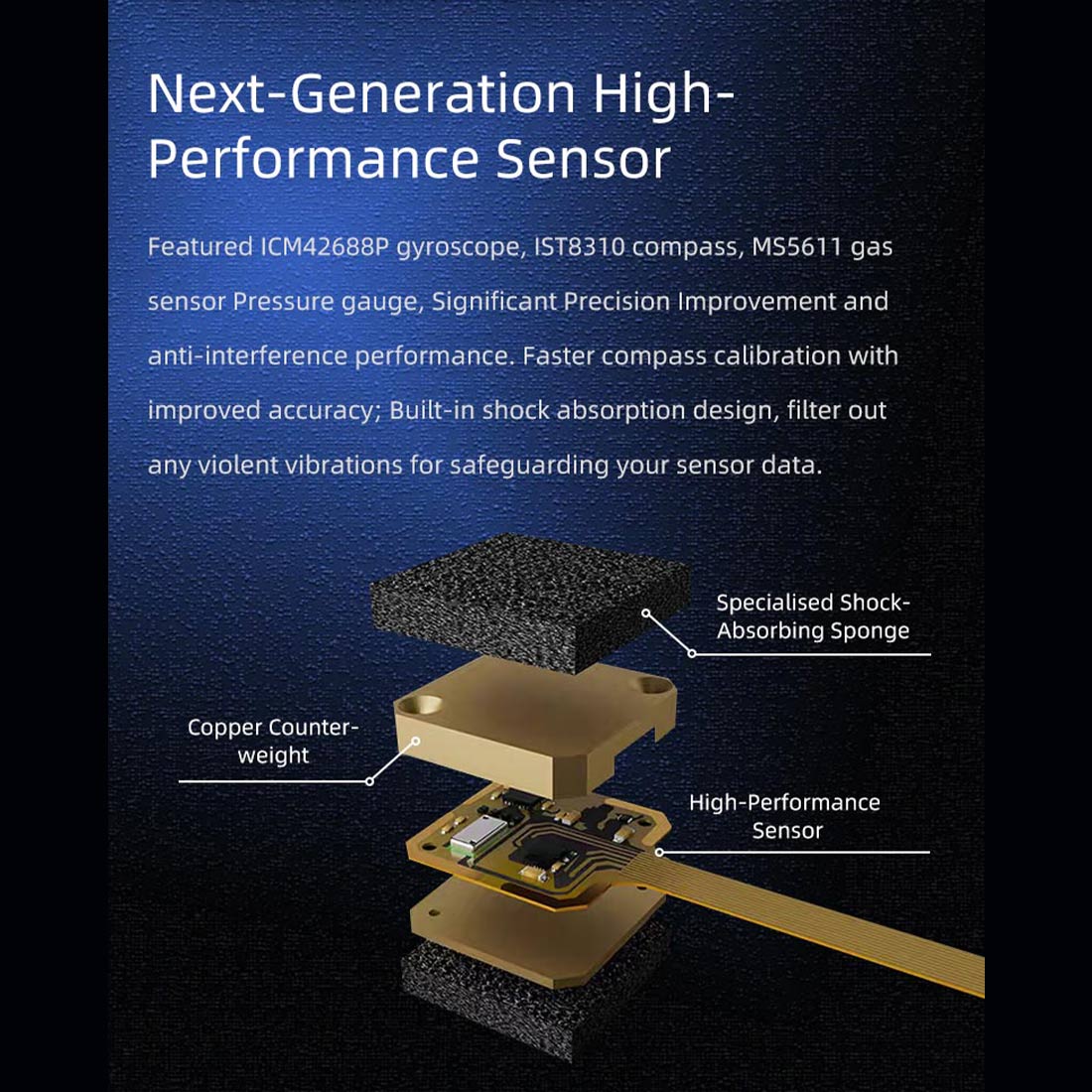

.Professional-Grade Autopilot with Dual GNSS Stability: The FlyWing H1 Pro Autopilot System is designed for performance pilots, featuring dual-redundant GNSS positioning, an independent suspended IMU with helicopter vibration-damping structure, and a pure-copper counterweight box to effectively suppress sensor inertia and vibration interference—delivering exceptional stability and precision.
.Advanced Algorithms for Superior Flight Performance: Equipped with RPM-based filtering and a newly upgraded IMU fusion-algorithm, the H1 Pro significantly improves flight smoothness, control accuracy, and adaptability across different helicopter platforms and configurations.

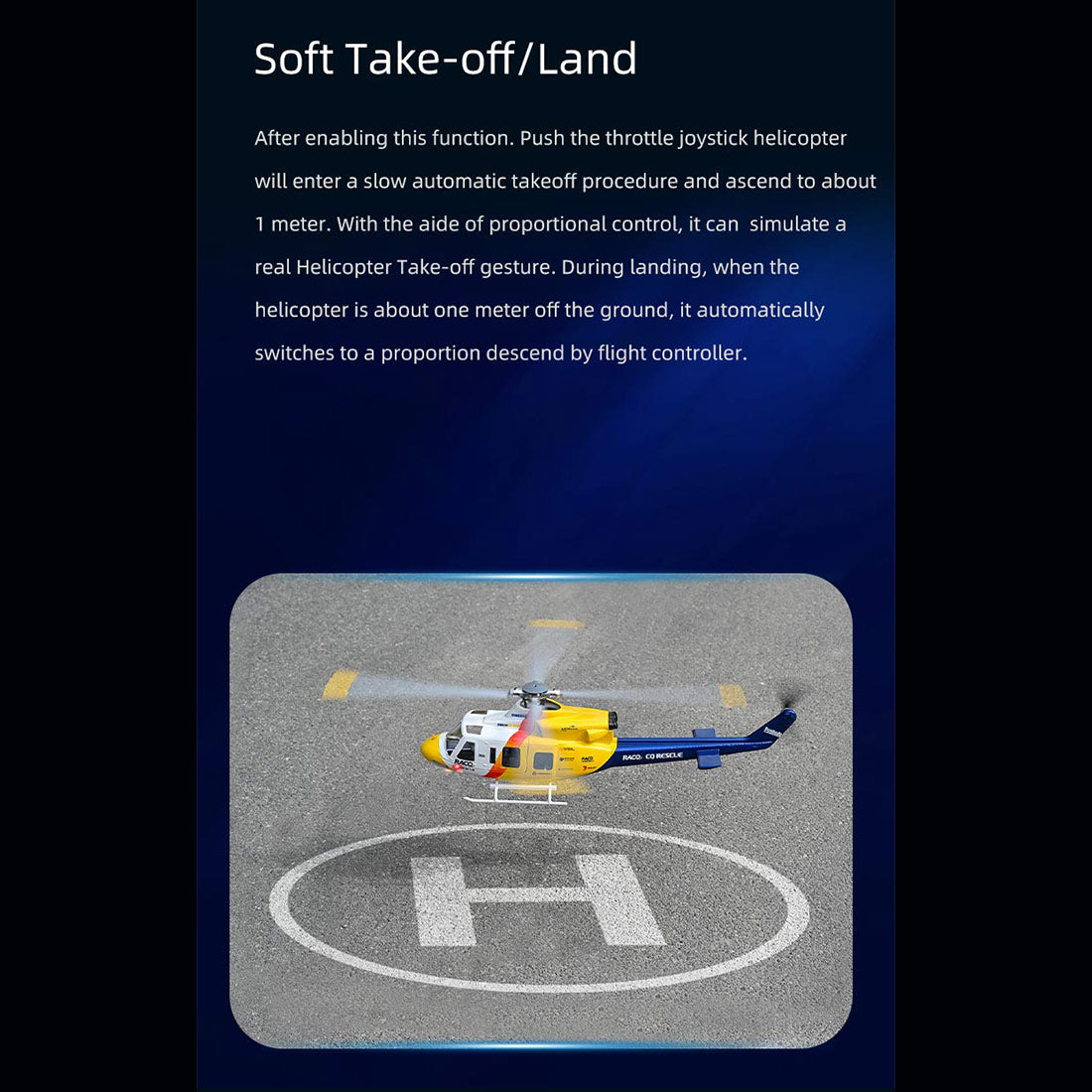

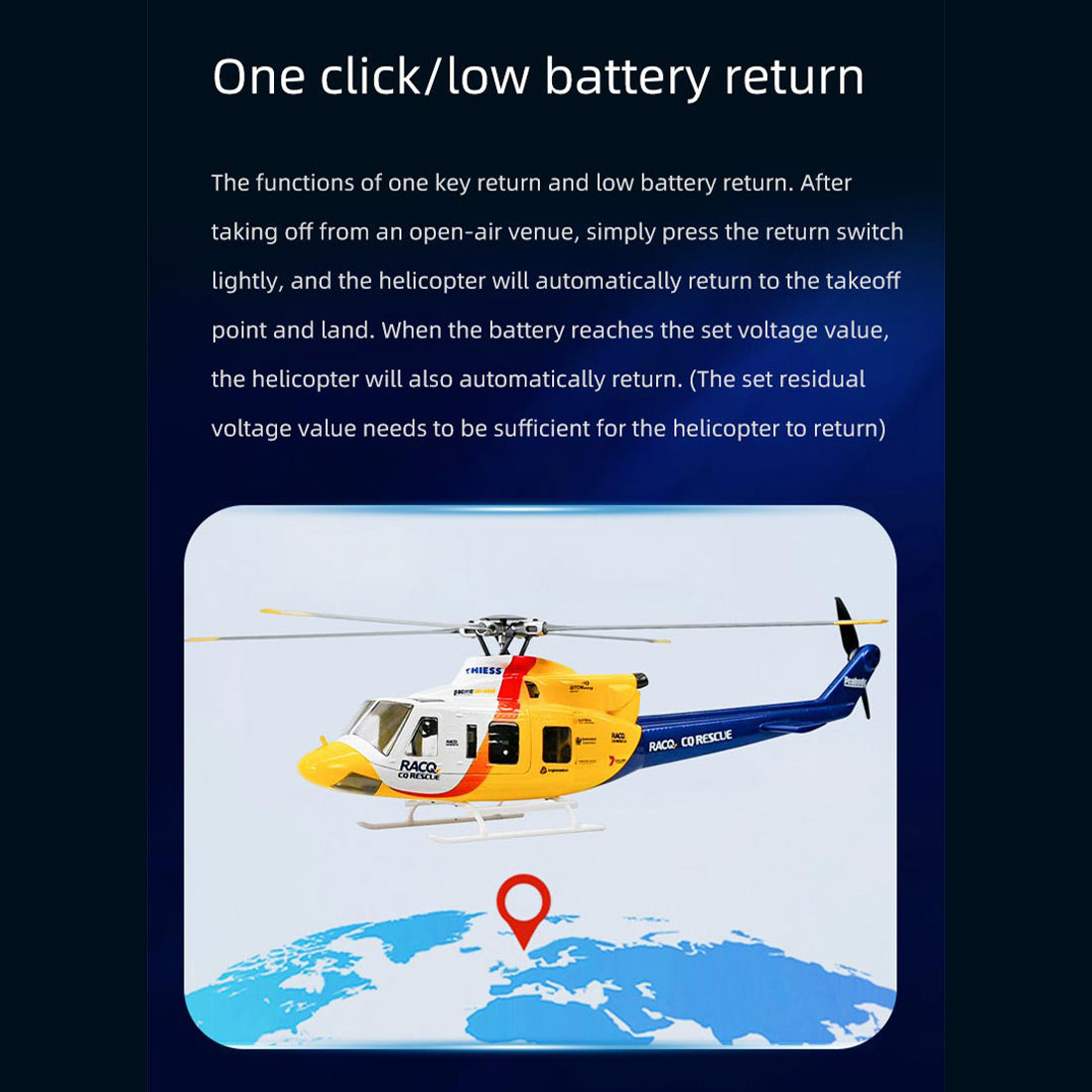

.Intelligent Safety & Assisted Flight Modes: Supports one-key Return to Home (RTH) and low-battery automatic RTH, during which the helicopter automatically climbs and returns to the takeoff point. Smooth takeoff and landing modes add realism and elegance while reducing pilot workload.

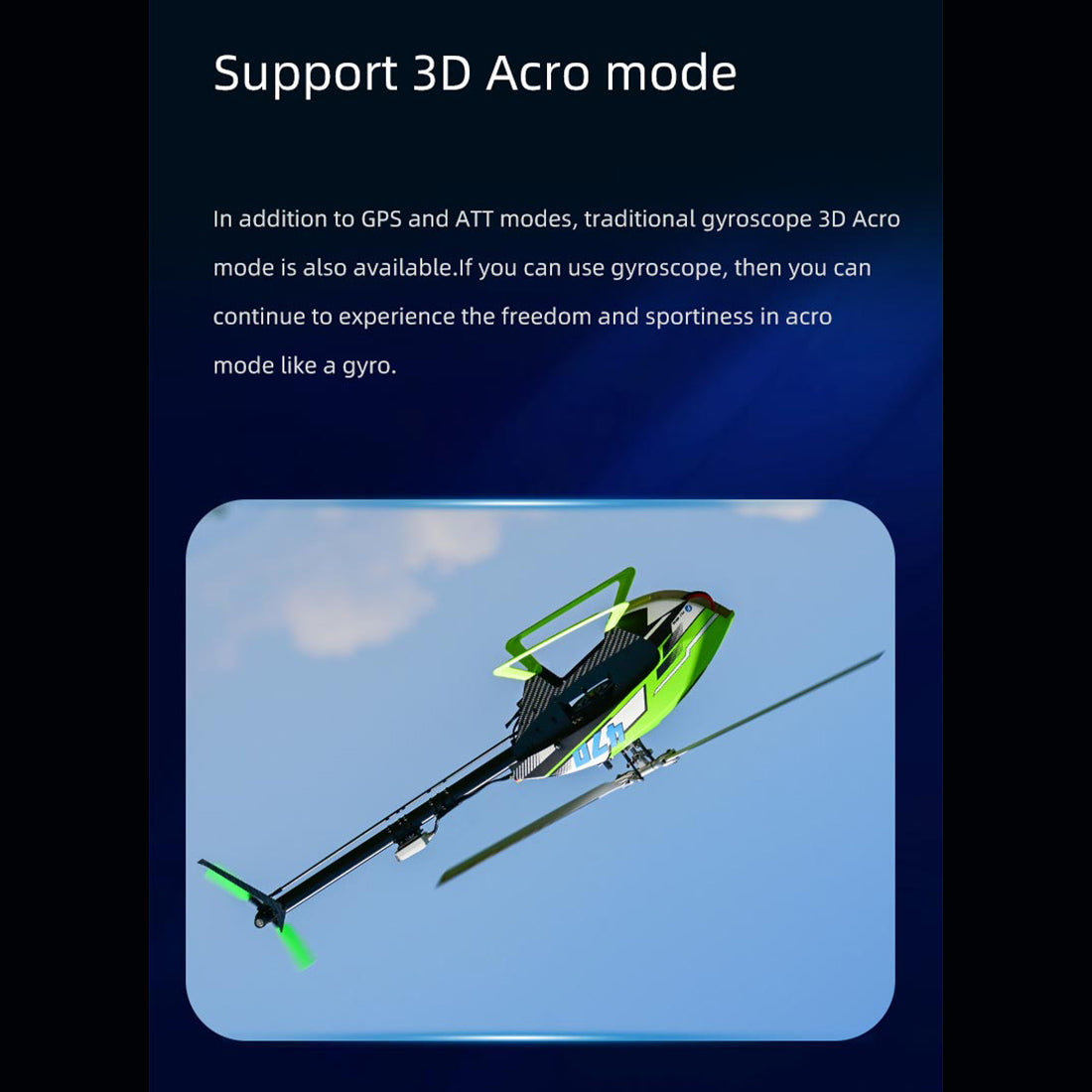

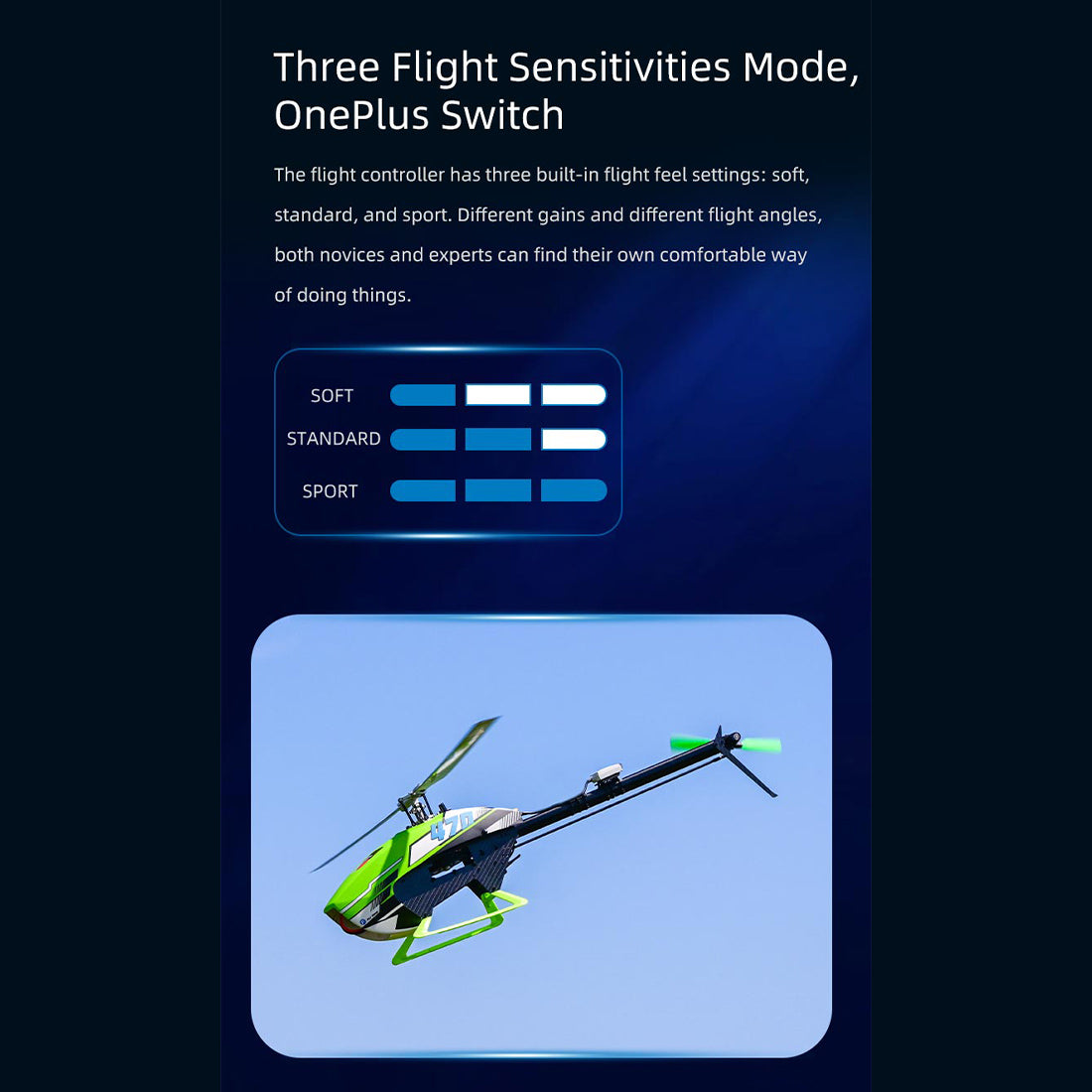

.Full Manual 3D Control with Adjustable Sensitivity: Fully supports manual 3D aerobatic flight, allowing pilots to unlock the full performance potential of their helicopter with gyroscopic assistance. Offers three flight sensitivity levels—Soft, Standard, and Sport—to suit beginners advancing to aggressive high-speed maneuvers.

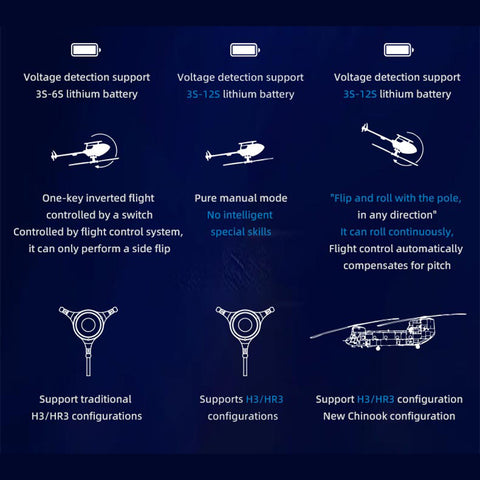

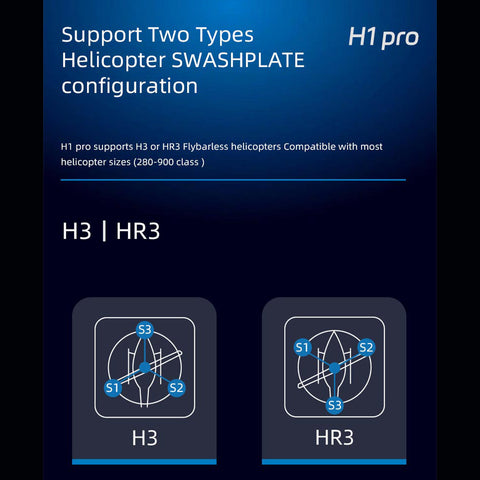

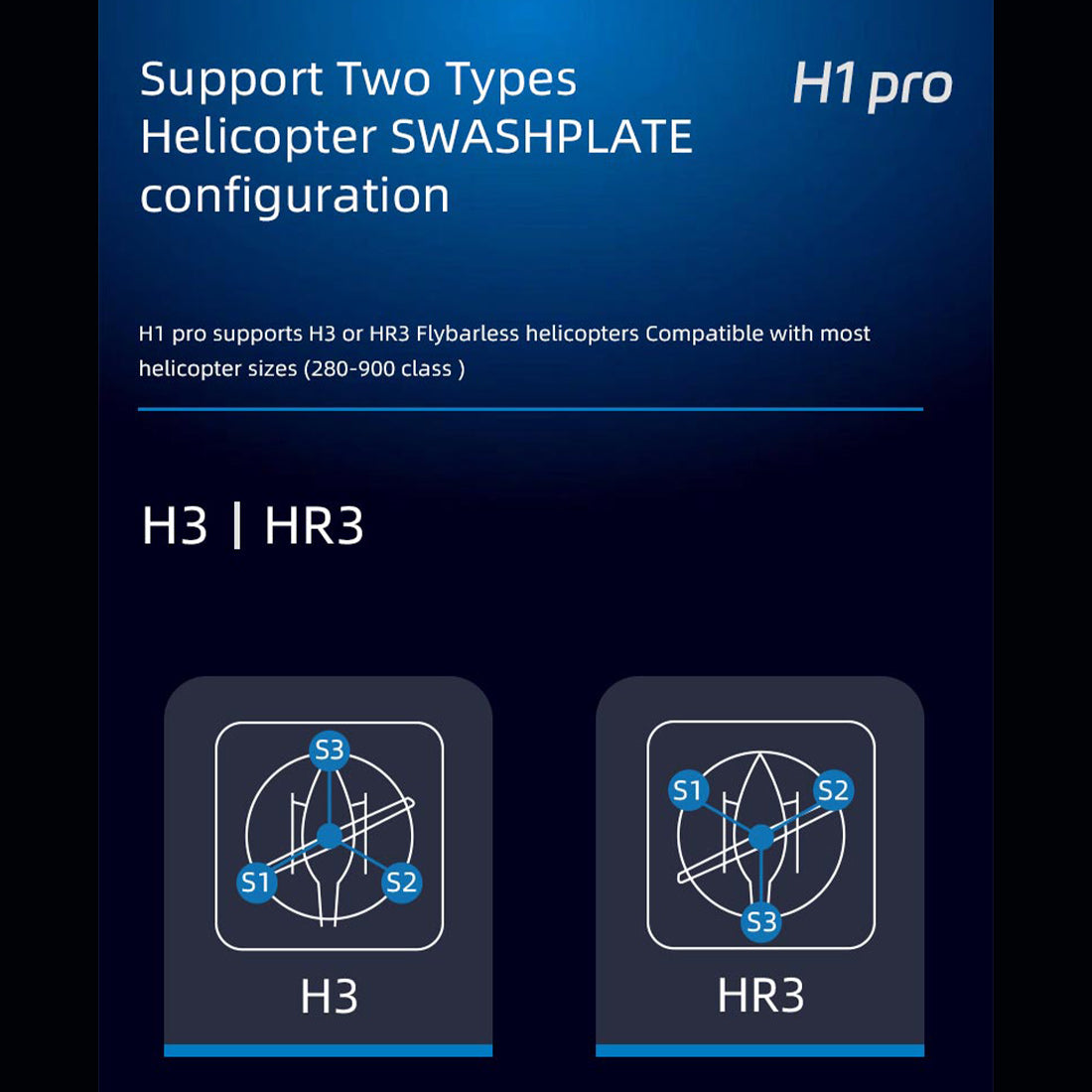

.User-Friendly Setup & Broad Compatibility: Easily configured via the H1 Pro Assistant software, with transmitter-triggered compass calibration and real-time LED status indication. Compatible with H3 swashplate (no aileron) and HR3 swashplate (no aileron) helicopters, designed for experienced users with technical installation skills.

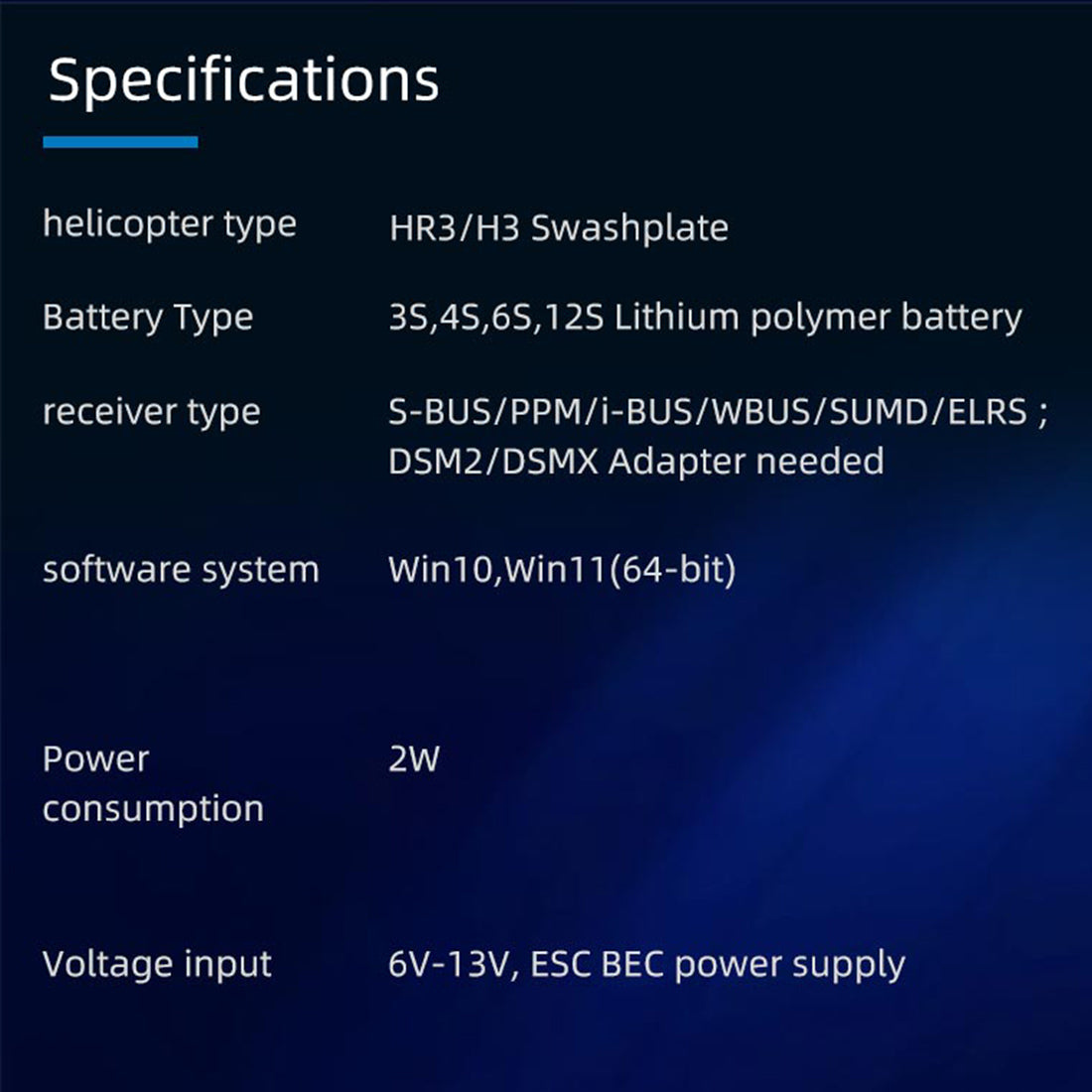

Specifications:

.Applicable Helicopter Type: HR3/H3 without ailerons and swashplate

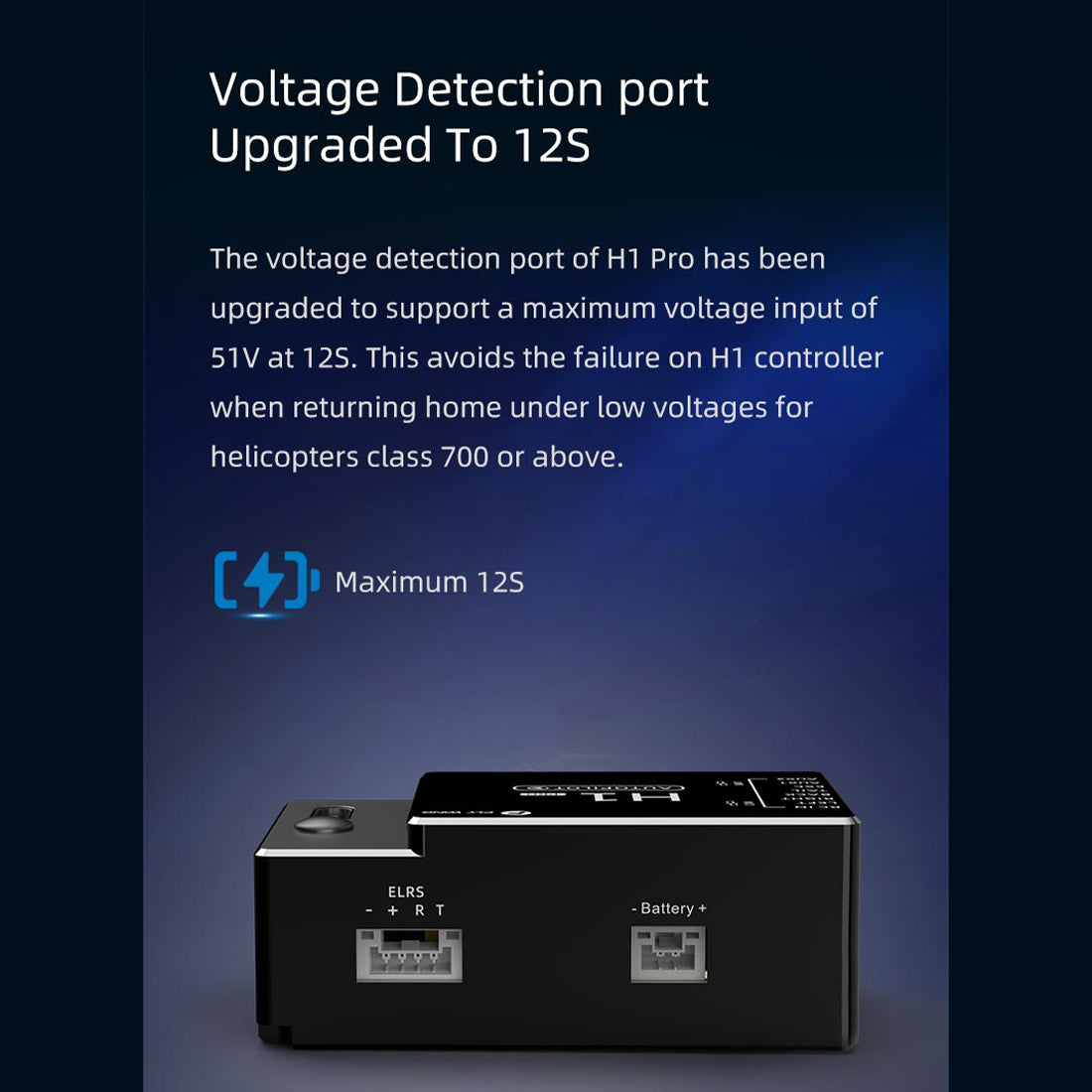

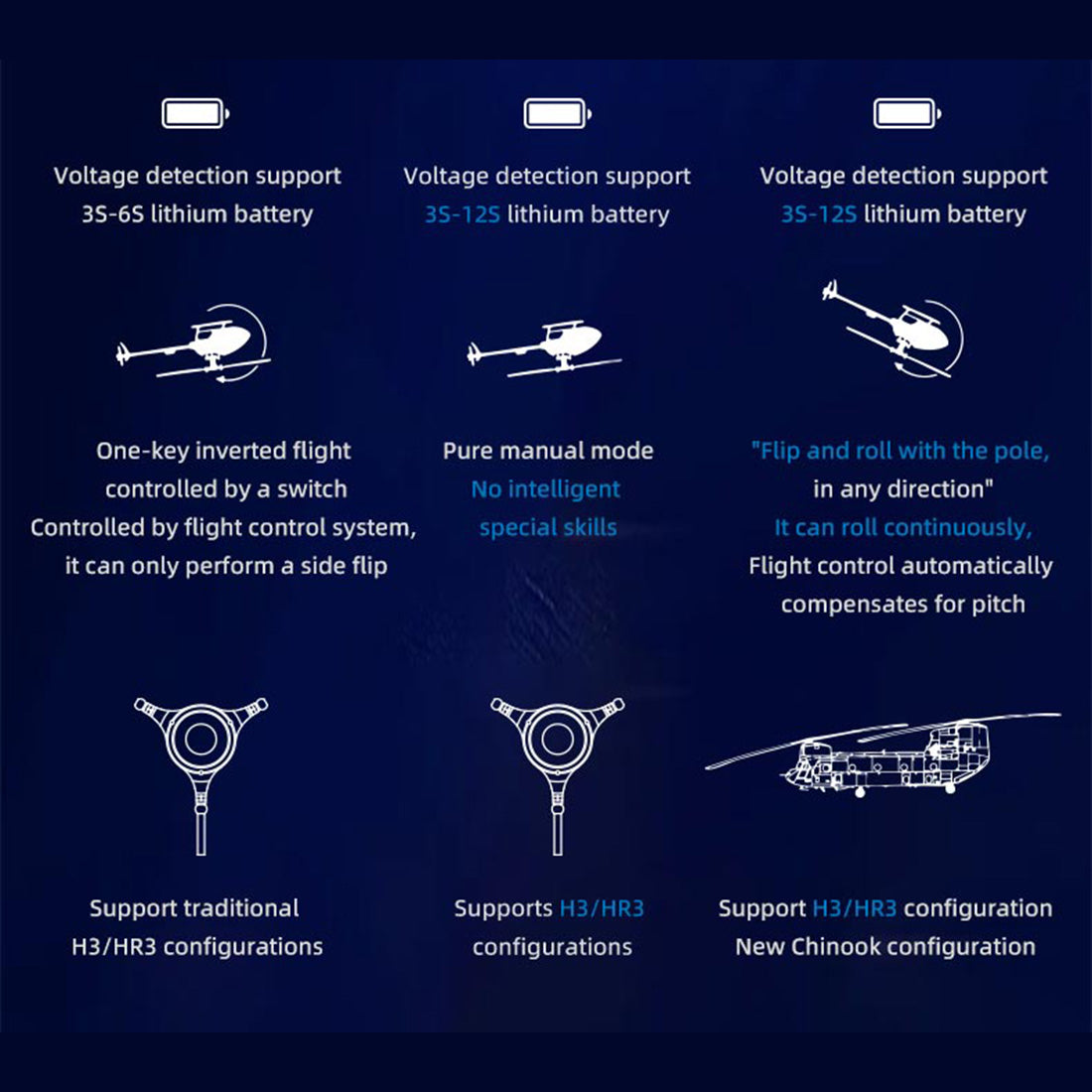

.Battery Type: 3S, 4S, 6S, 12S lithium polymer batteries
.Receiver Type: S-BUS / PPM / i-BUS / WBUS / SUMD / ELRS; DSM2/DSMX requires an adapter
.Supported Computer Systems: Win10, Win11 (64-bit)
.Rated Power: 2W
.Voltage Input Range: 6V-13V, powered by ESC BEC

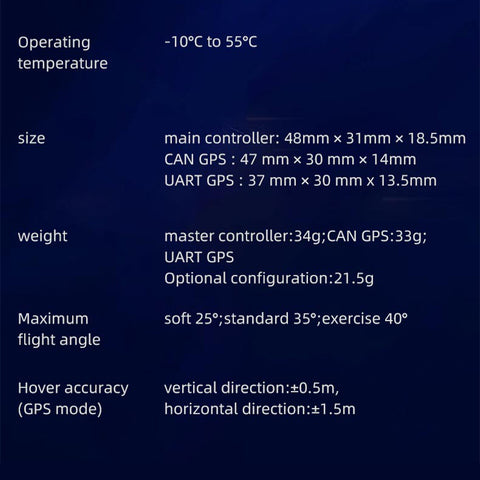

.Operating Ambient Temperature: -10°C to 55°C

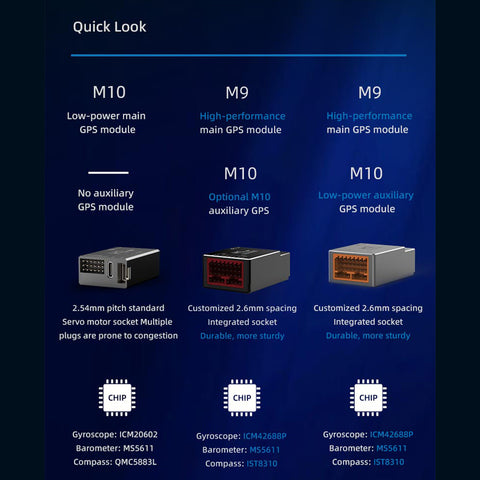

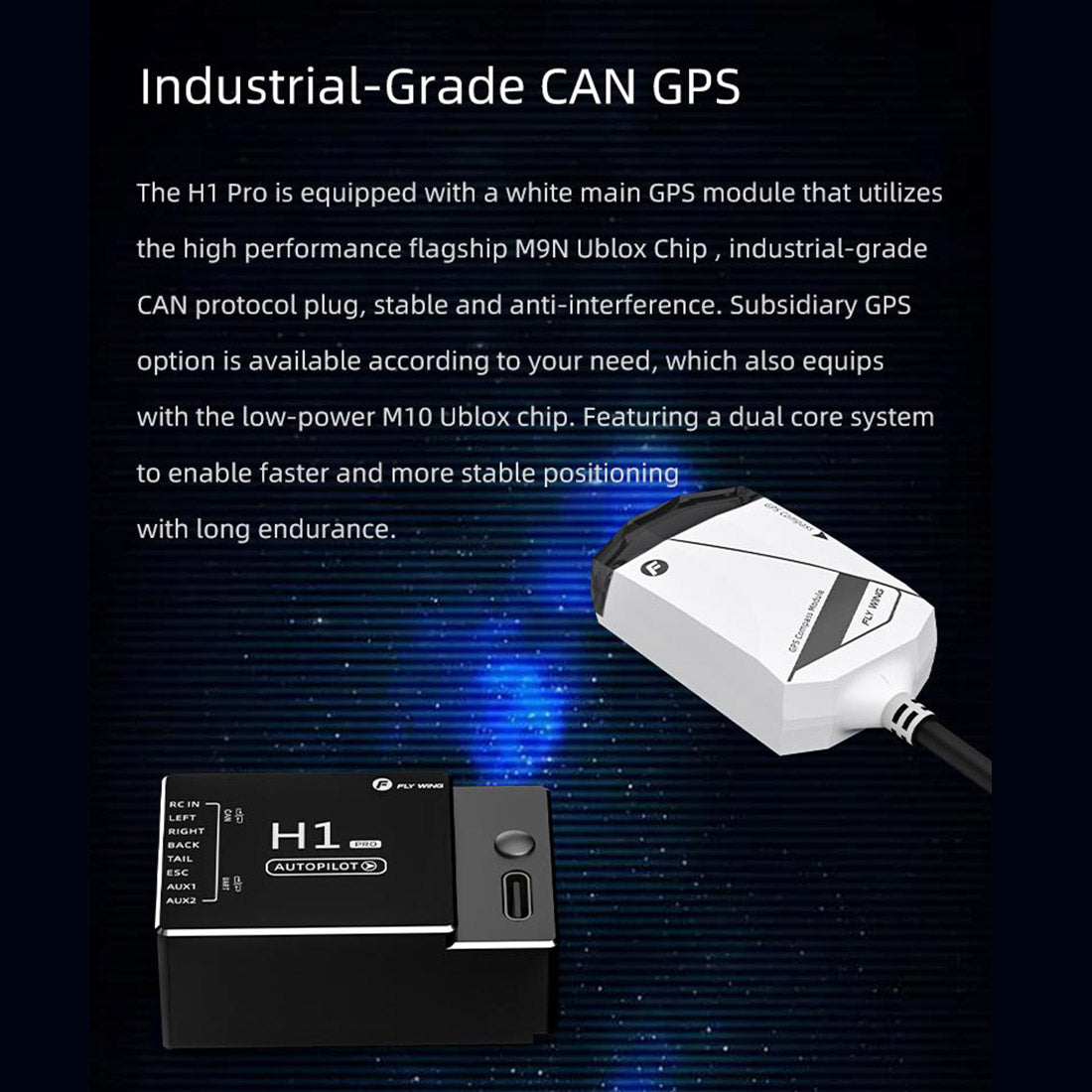

.Dimensions: Main FCU: 48 mm * 31 mm * 18.5 mm; CAN GPS: 47 mm * 30 mm * 14 mm; UART GPS: 37 mm * 30 mm * 13.5 mm
.Weight: Main FCU: 34 g; CAN GPS: 33 g; UART GPS: 21.5 g
.Maximum Flight Tilt Angle: Graceful Mode: 25°; Standard Mode: 35°; Sport Mode: 40°
.Hovering Accuracy (GPS Mode): Vertical: ±0.5 m; Horizontal: ±1.5 m
.Material: Plastic + Electronic Components
.Product Weight: 50g
.Package Weight: 150g
.Product Dimensions: 4.8 x 3.1 x 1.85cm
.Package Dimensions: 15 x 10 x 6cm

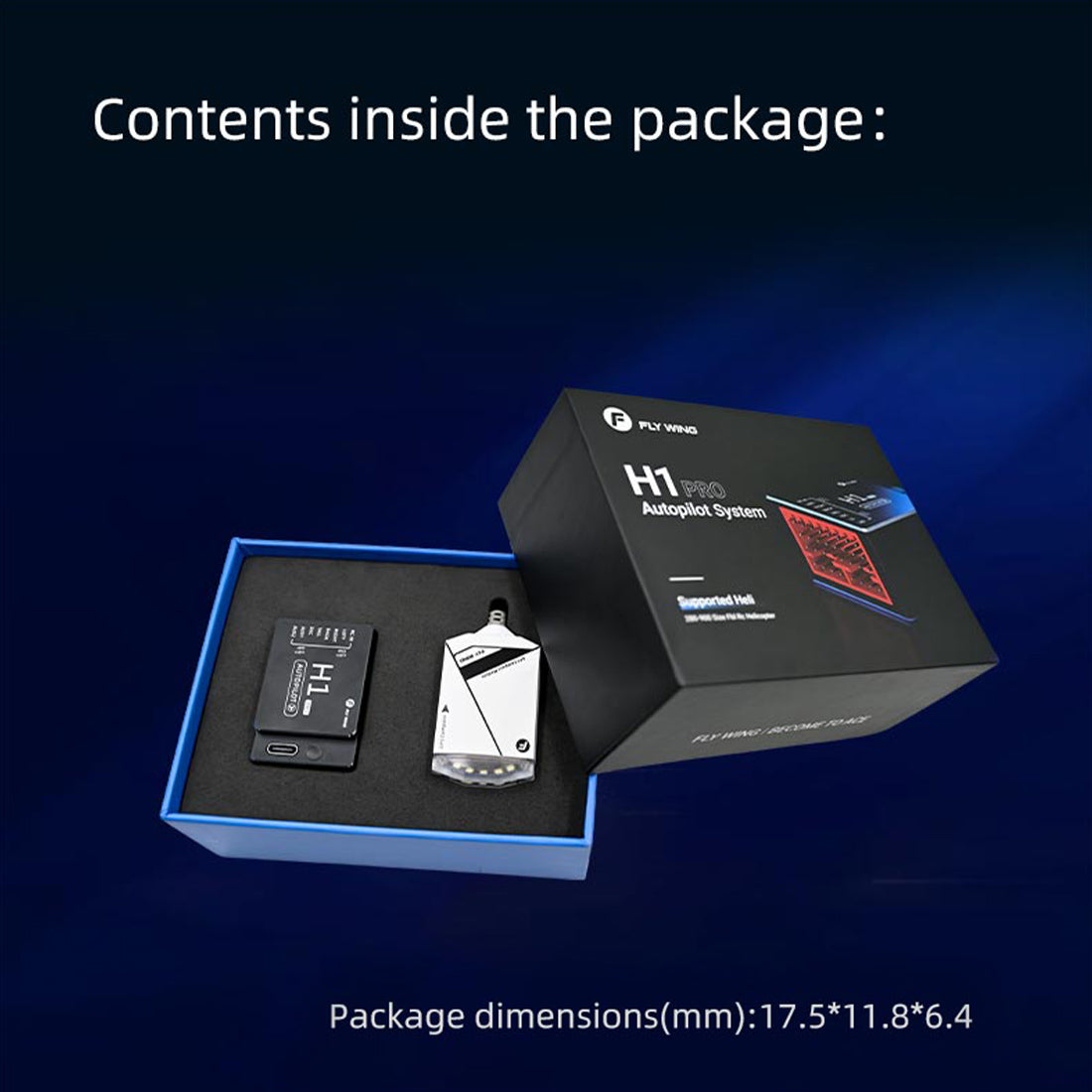

.Packing: Box
.Age: 16+
